This is a 35-Amp 3-Phase bridge rectifier that converts three-phase AC voltage to DC voltage. This unit is perfect for smaller generators that put out 35 Amps or less. This includes 3-Phase AC motors which are often used to make wind generators!
- Will work on all battery banks
- The operating range is 0 to 1,000-Volts
- Will work on AC generators that produce 35-Amps or less
- Spade terminals for easily attaching the input and output wires

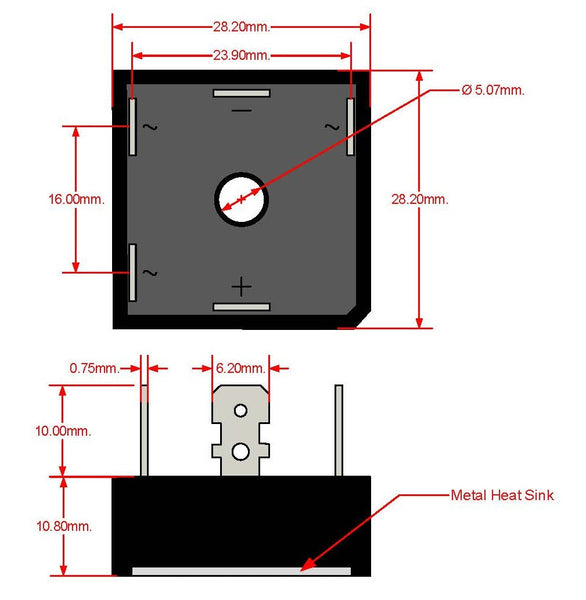

- One center mounting hole for easily securing to your heatsink and electrical box
SPECIFICATIONS:
- Repetitive Peak Reverse Voltage (VRRM): 1000 Volts
- Average Rectified Output Current (IO): 35 Amps
- Surge Forward Current (IFSM): 400 Amps
- Peak Forward Voltage (VFM): 1.2 Volts
- Peak Reverse Current (IRRM): 10 uAmps
- Storage Temperature: -40 to +150C
- Junction Temperature (Tj): -40 to +150C
