SPECIFICATIONS

Brand Name: VBESTLIFE

Built-in Battery: No

Choice: yes

High-concerned chemical: None

Input Type: RCA

Origin: Mainland China

Output Type: LINE OUT (AUDIO OUT)

Recommended Headphone Maximum Impedance: < 32 Ohm

Type: Mini Amplifier

control range: ±12db

Features

Control Range: 7 band equalization circuit control range ± 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
Basic Parameters: 7 band sound equalizer preamplification gain, 4580 classic op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.
Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.
3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group lotus interface is available.
Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, corrosion resistance, stable performance, DC5V‑12V power supply, dual channel sound.
Specification

Item Type: 7 Band Sound Equalizer
Material: Aluminum Alloy
Power Supply: DC5V-12V
Interface Specification: 5.5x2.1
Input Impedance: 20K
Output Impedance: 600 Ohms
Equalization Circuit Control Range: ±12dB
Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ

How to Use

Remove the product and use it

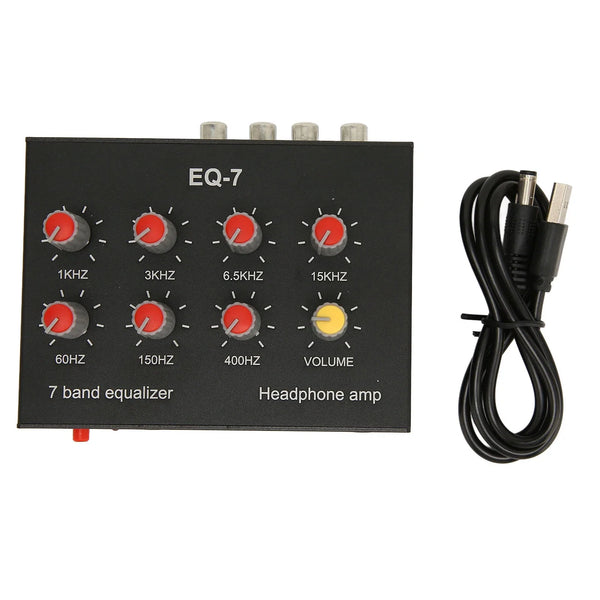

Package List

1 x 7 Band Sound Equalizer

1 x Power Supply Cable
