SPECIFICATIONS
Brand Name: Szaoju
Certification: CE
Channel: 2
Choice: yes
Frequency: 433 MHz
High-concerned chemical: None
Origin: Mainland China
Support APP: Yes
Use: Universal
Wireless Communication: RF

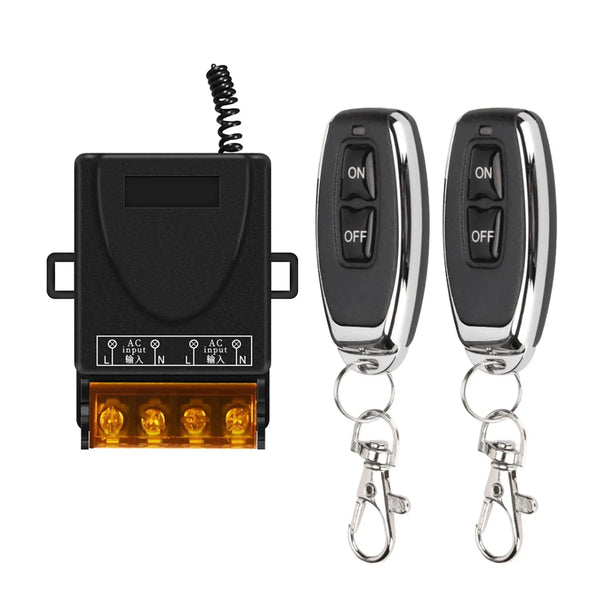

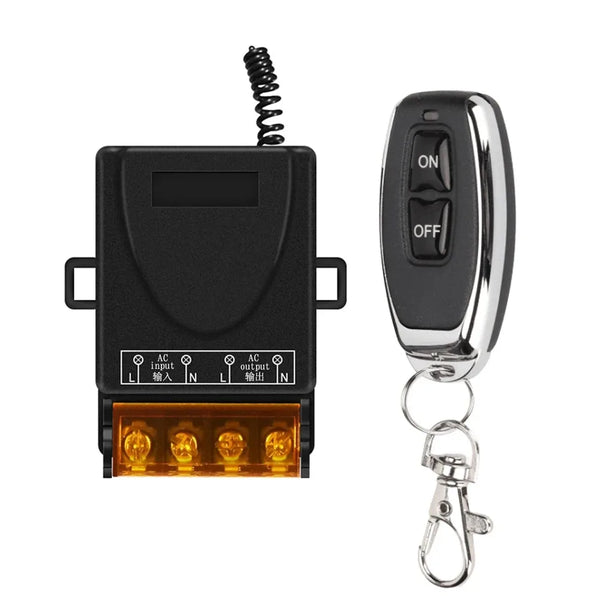

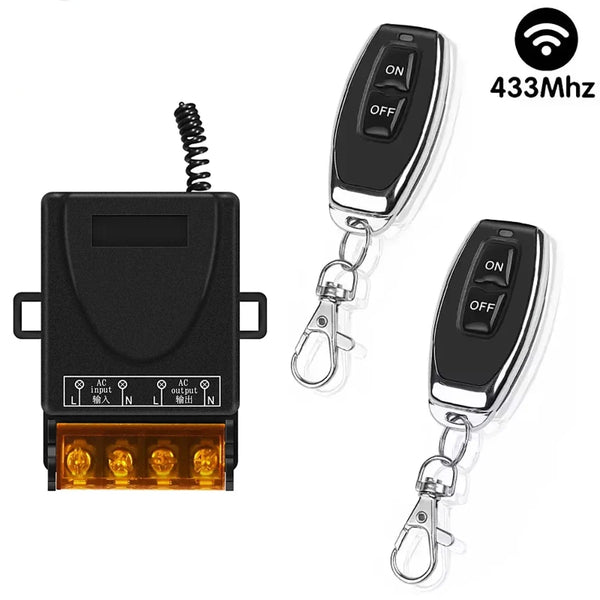

RF Wireless Remote Control Switch 433Mhz AC 220V Relay for Light Lamp Water Pump Door Access System
Features
Convenient to install and easy to use.
It can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
You can remotely operate every device connect with the relay receiver through the remote control.
It can be used in lights, pump, wireless security alarm, fan, lamp, wireless door alarm, ventilation device, monitor, printer, fountain, etc.
The wireless signal can pass through walls, floors and doors; Max range is up to 328ft with no obstacle.
Stable performance and low-power consumption, long service life.

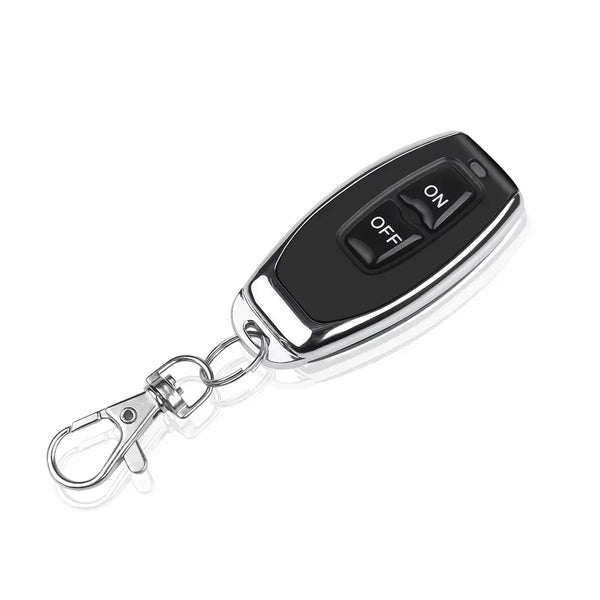

Remote control
Operating Settings:
Working Mode:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.
How to Reset?
Long press the learning button for about 8 seconds until the indicator light flashes, succeed.
After reset, all transmitters will no longer function and need to learn again.
How to set Latched Mode?
Press the Learning Button 3 times, the Led indicator flash 3 times, then press button A, after 3 seconds then press button B, the Led indicator flash for 3 times, learning succeed.
We set Latched Mode as default mode, if you want to set other mode, please check user manual for reference.

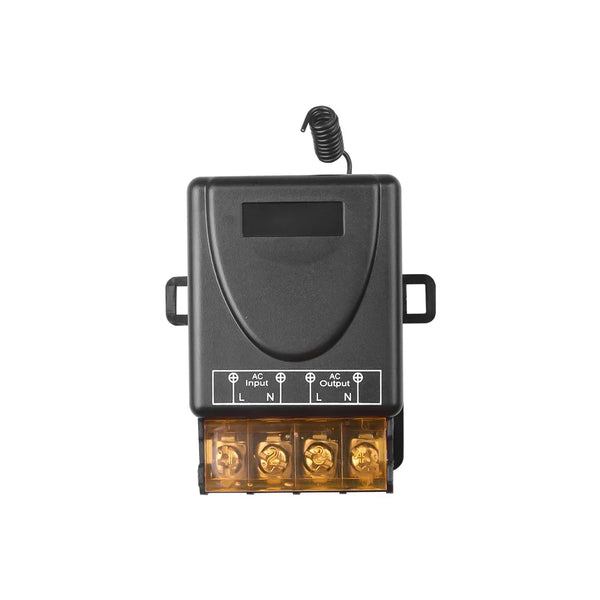

About Receiver
Operating Voltage: AC 220V
Receiving Range: 328ft (Open space)
Operating Mode: Momentary/Toggle/Latched/Delay mode
RF Frequency: 433MHz
DC Encoding Type: Learning code
RF Channel: One
Transmitter Support: Max 26
Input Terminals: Live (L) and Neutral (N) electrodes
Output Terminals: Live (L) and Neutral (N) electrodes
Case Construction: ABS Plastic
