SPECIFICATIONS
Brand Name: VBESTLIFE
Certification: CE,ce
Choice: yes
High-concerned chemical: None
Item Type: SWITCHES
Material: Plastic
Model Number: 2P Automatic Transfer Switch
Origin: Mainland China

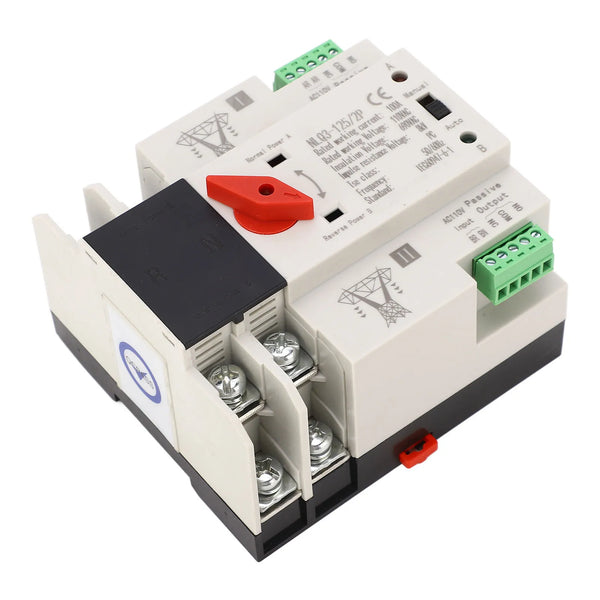

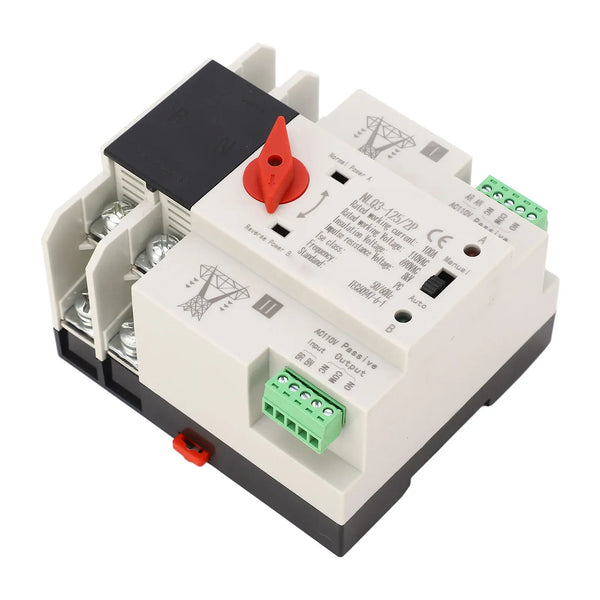

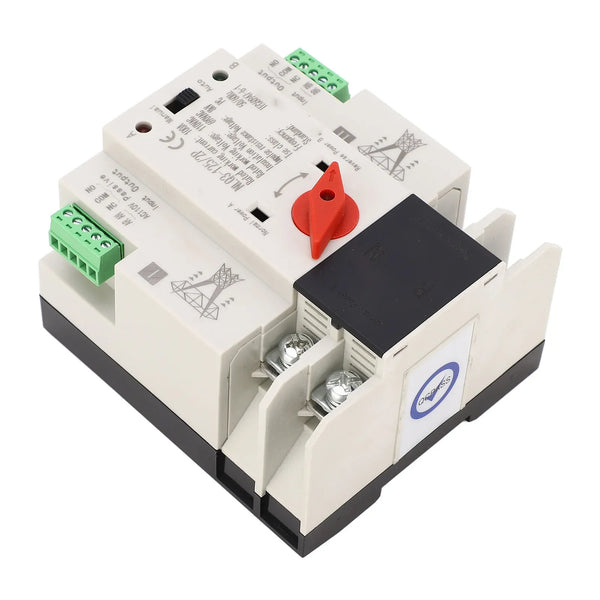

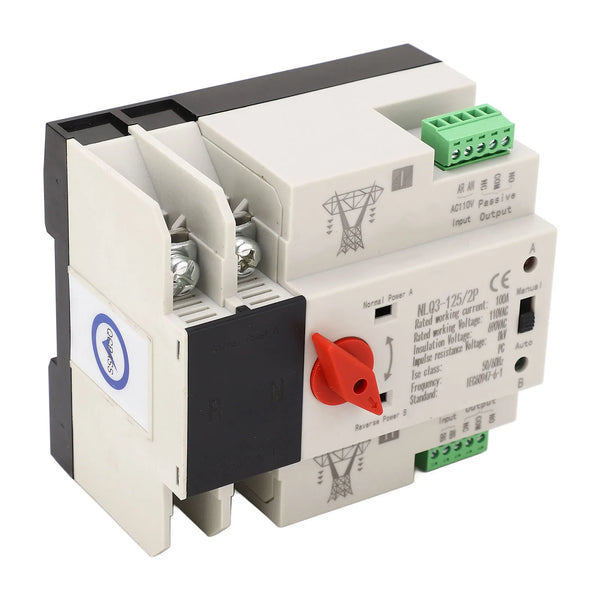

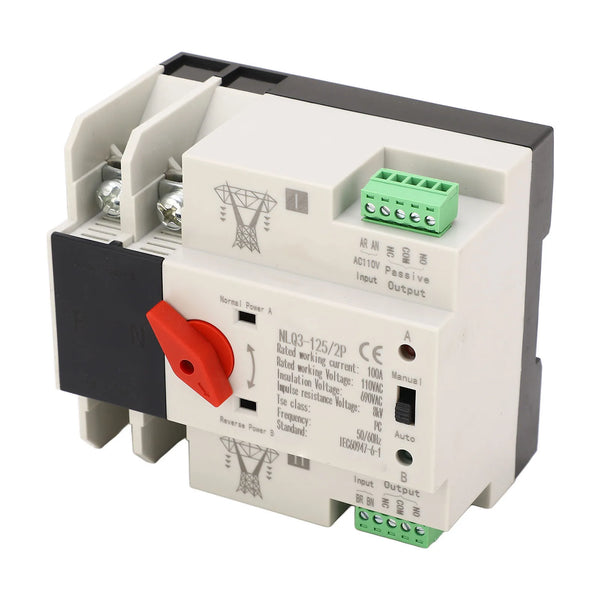

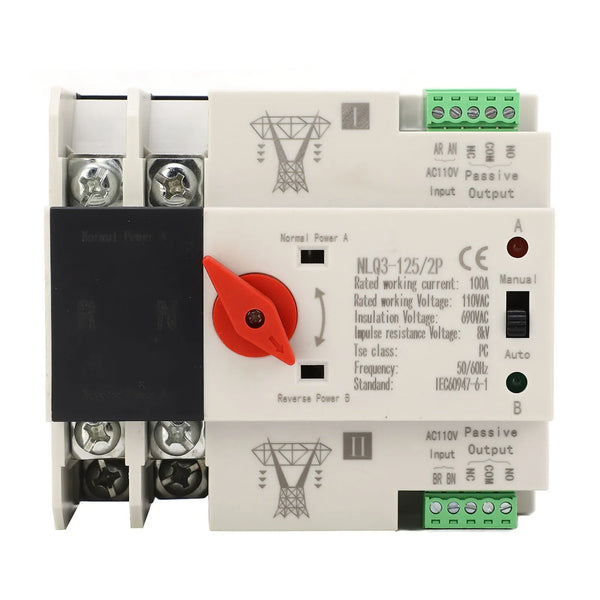

AC110V 100A Dual Power Automatic Transfer Switch 35mm Rail Mounting 2P ATS Generator Transfer Changeover Switch
Feature:
1. Operation Mode: Double power automatic transfer switch can be operated automatically or manually, widely used in various places where continuous power failure is not allowed. Specially used for PZ30 power distribution box.2. Working Principle: When the automatic transfer switch works, when the normal power supply is abnormal, the standby power supply works immediately. When the normal power supply is turned on, it will automatically switch back to normal power supply from the standby power supply, ensuring a continuous and reliable power supply.
3. Reliable Transmission: This automatic transfer switch is suitable for 50 or 60Hz AC rated 110V 100A emergency power supply system with compact structure, reliable transmission, standard 35mm rail mounting and easy installation and maintenance.
4. Self Throwing and Self Returning: The double power automatic transfer switch is self throwing and self returning type with stable performance, widely used in families, factories, laboratories, farms, etc.
5. PC and Silver: The changeover switch is made of flame retardant PC material, with good insulation and high temperature resistance, and silver contact anti aging, safe, reliable and anti interference.
Specification:
Item Type: Dual Power Automatic Transfer SwitchMaterial: PC, silver
Switch Type: Secondary power distribution
Rated Current: 100A
Rated Voltage: 110VAC
Insulation Voltage: 690VAC
Rated Frequency: 50Hz 60Hz
Electrical Grade: PC grade isolation type
Rated Impact Withstand Voltage: 8KV
Touch Time: Operation Conversion Time: Return Time: Closing Time:
How to Use:
Check the integrity of the ATS before installation, turn the ATS on or off with the operating handle, check the flexibility of the drive and test the generation and disconnection conditions for each stage of load for normal and standby power.Package List:
1 x Dual Power Automatic Transfer SwitchNote:
