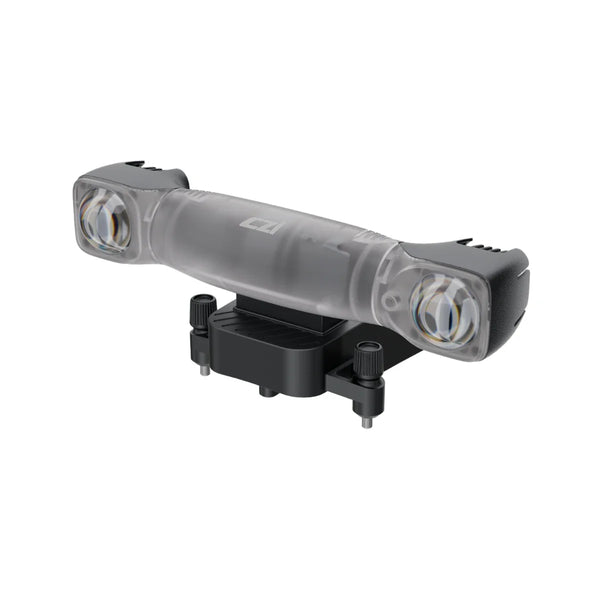

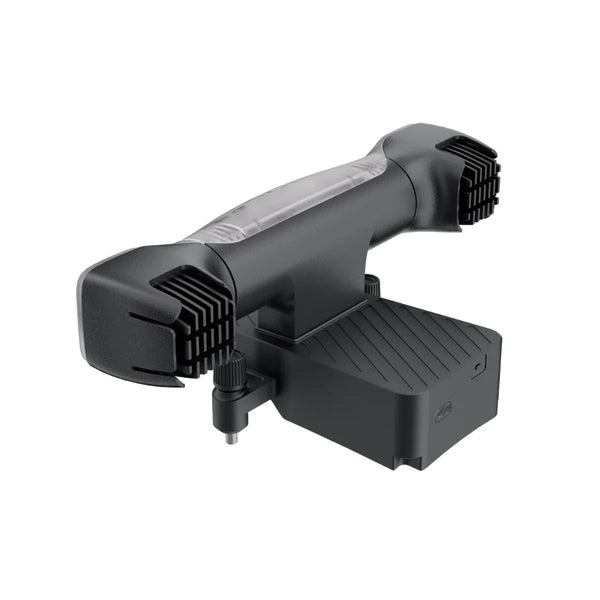

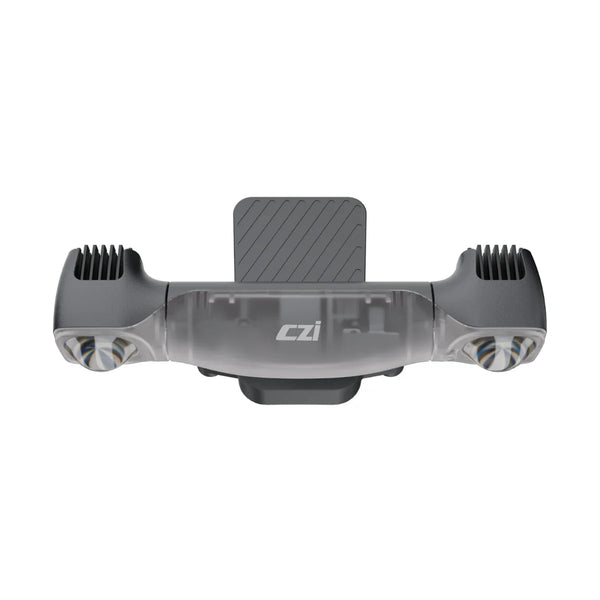

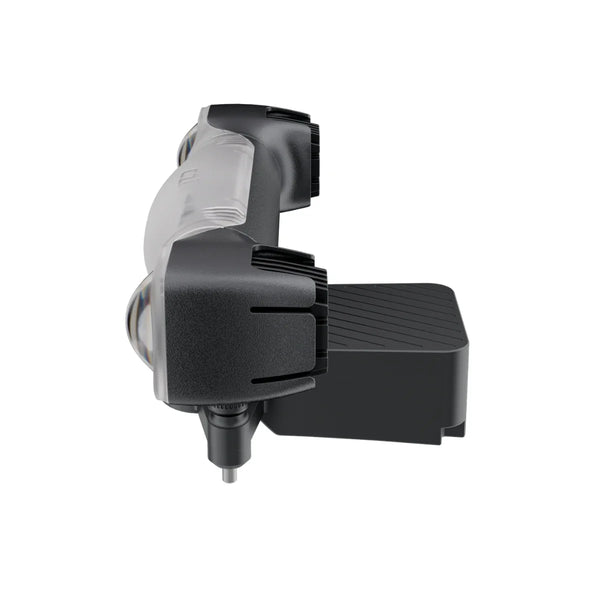

CZI GL10 V2 Gimbal Searchlight: 3,200-Lumen Aerial Illumination for DJI Mavic 3 Enterprise Missions

The CZI GL10 V2 Gimbal Searchlight is a lightweight aerial illumination payload designed for the DJI Mavic 3 Enterprise drone series. Mounted on the aircraft’s top accessory port using the DJI Payload SDK interface, the searchlight delivers focused lighting during night operations while remaining compact enough to preserve aircraft flight performance.

With a 3,200-lumen white LED output and a controlled 14-degree beam angle, the system illuminates targets at distances up to 100 meters for search, inspection, and emergency response missions.

Built for public safety teams, infrastructure inspectors, and professional drone operators, the GL10 V2 integrates lighting, signaling, and directional indication into a single payload. A stabilized gimbal allows precise beam control, while integrated multi-color LEDs and a green laser pointer support visual signaling and directional targeting during coordinated operations.

Key Features and Benefits

• High-intensity illumination: 30W white LED produces 3,200 lumens for aerial lighting
• Focused beam angle: 14-degree optical design concentrates illumination on operational targets
• Extended lighting reach: effective illumination distance reaches up to 328 feet (100 meters)
• Multi-color signaling module: red, blue, and yellow LEDs support visual signaling operations
• Integrated laser pointer: green laser enables directional indication during coordinated missions
• Stabilized gimbal control: adjustable pitch range from −100° to +60° enables precise aiming
• Lightweight payload design: ≤130 gram weight minimizes aircraft performance impact
• Direct aircraft integration: DJI PSDK interface connects through Mavic 3 accessory port
• Intelligent beam alignment: AI algorithm keeps light centered with aircraft camera view

High-Output Aerial Lighting With Camera-Aligned Beam Control

Professional drone teams often require reliable illumination without adding significant payload weight or complexity. The GL10 V2 addresses this requirement by combining high-intensity lighting with compact mechanical design and integrated aircraft control.

Producing approximately 20 percent more brightness than the previous GL10 model, the system improves nighttime visibility for aerial search, inspection, and response missions. The stabilized gimbal ensures the light beam remains aligned with the aircraft camera perspective, allowing pilots to illuminate exactly what they are observing.

This synchronized illumination improves situational awareness and enables crews to conduct safer, more precise operations in low-light environments.

Compatibility and System Integration

• Compatible with DJI Mavic 3 Enterprise, DJI Mavic 3 Thermal and Thermal Advanced, DJI Mavic 3 Multispectral
• DJI PSDK interface: communicates directly through aircraft payload software development kit
• DJI Pilot 2 control: operators manage lighting modes through flight application interface
• Top accessory mounting: installs directly on aircraft port using secure thumb screws

Applications and Use Cases

• Search and rescue operations: illuminate terrain to locate missing persons at night
• Public safety patrols: provide aerial lighting and signaling during law enforcement missions
• Infrastructure inspection: illuminate bridges, towers, and power lines during nighttime assessment
• Disaster response support: assist emergency crews working in areas without power infrastructure
• Emergency scene management: improve aerial visibility for responders during night operations
• Security monitoring missions: enable aerial surveillance and deterrence in low-light environments

The CZI GL10 V2 Gimbal Searchlight expands the operational capabilities of the DJI Mavic 3 Enterprise platform by providing dependable aerial illumination and signaling in low-visibility environments. Its combination of focused lighting, intelligent beam alignment, and lightweight construction allows professional drone teams to perform critical missions with greater clarity and situational awareness.

With decades of experience supporting professional UAV operators, DSLRPros provides integrated drone solutions, training, and lifecycle support.

Purchase the CZI GL10 V2 Gimbal Searchlight from DSLRPros to equip your Mavic 3 Enterprise platform with reliable aerial illumination.
