SPECIFICATIONS

Brand Name: tungfull

Certification: ce

Choice: yes

Commutation: Brush

Origin: Mainland China

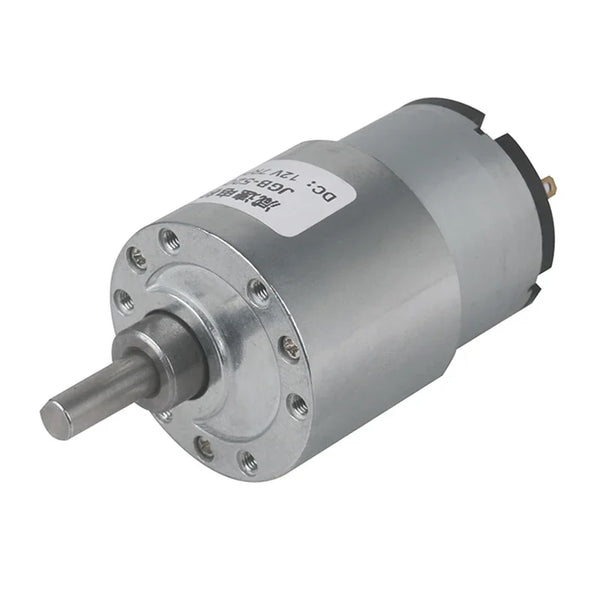

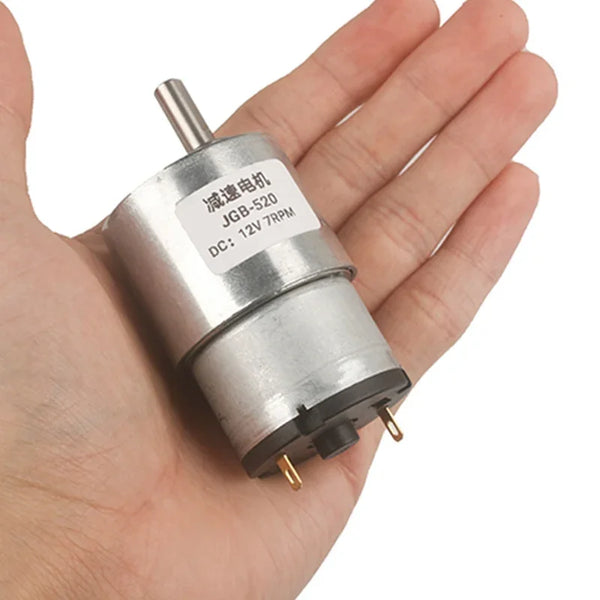

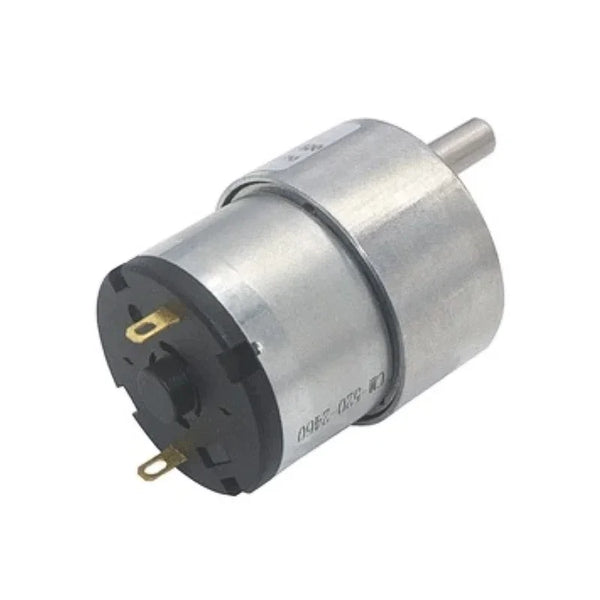

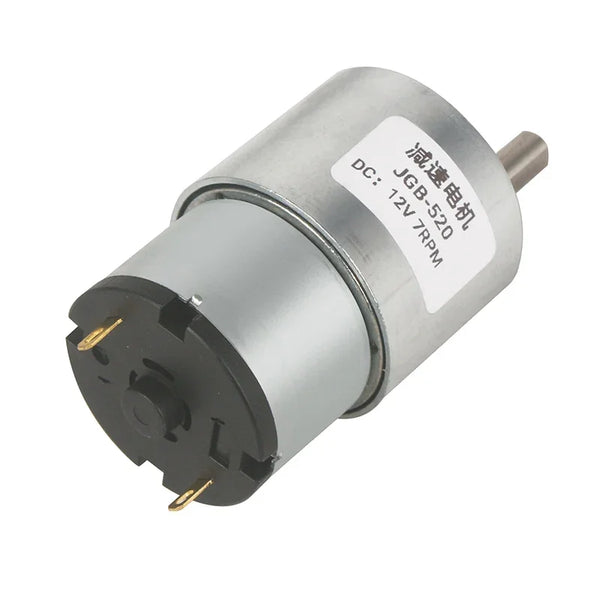

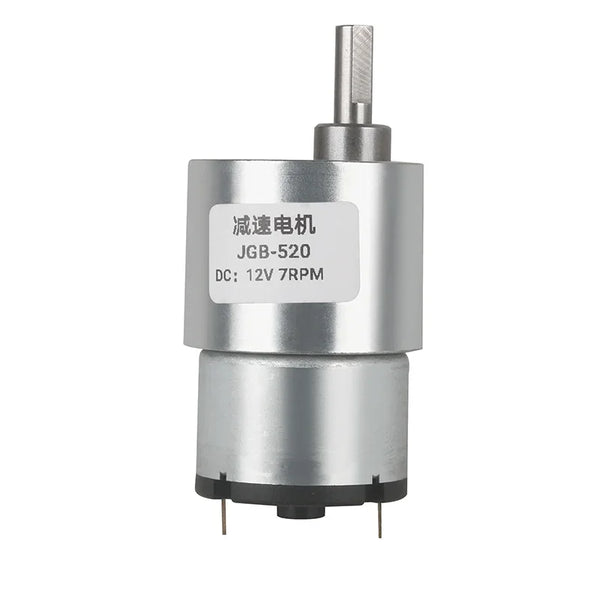

Product name: DC reduction motor

Revolutions: 10-1280rpm

Current: 1A

Motor size: 37 * 52MM

Speed regulation: adjustable

Weight: 151g

Model: JGB37-520

Voltage: DC 6V12V24V

Power: 2W

Use for 24 consecutive hours

Output shaft size: 6 * 15MM

Forward and reverse: Yes

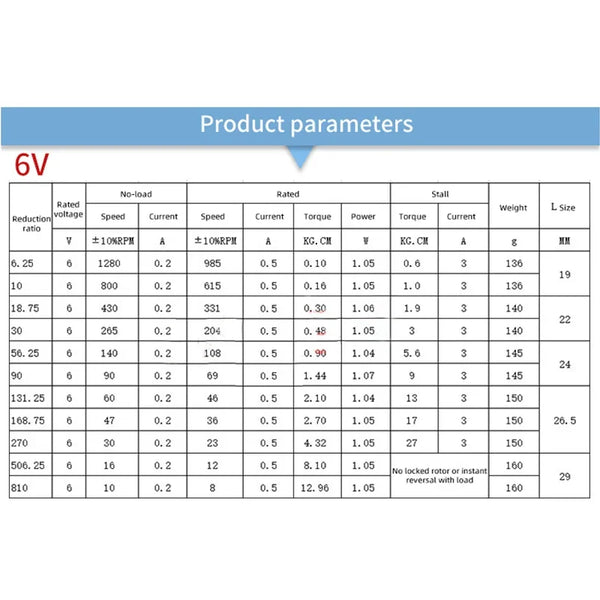

Explanation of motor related parameter names

1. No load speed: the speed at which the motor is normally energized without load. (Unit: rpm or r/min or r/min）

2. No load current: the current of the motor under normal energization and no load state. (Unit: MA mA

3. Load torque: rated torque of motor during load test, only for test reference; (Unit: gcm g/cm or kgcm kg/cm)

4. Load speed: the speed of motor under load torque. (Unit: rpm or r/min or r/min)

5. Load current: current of motor under load torque. (Unit: mA mA or A A)

6. Locked rotor torque: also called starting torque, is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock up. (Unit: gcm kg/cm or kgcm kg/cm)

7. Locked rotor current: also called starting current, which is the maximum current when the motor stops due to locked rotor; (Unit: mA sea milliampere or A ampere
