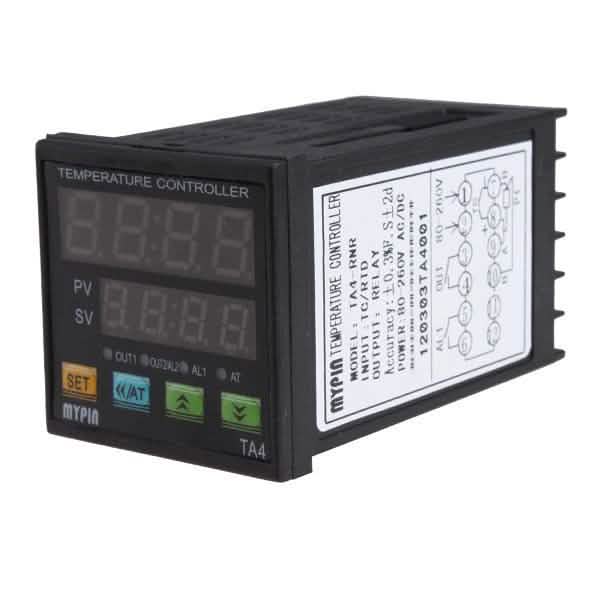

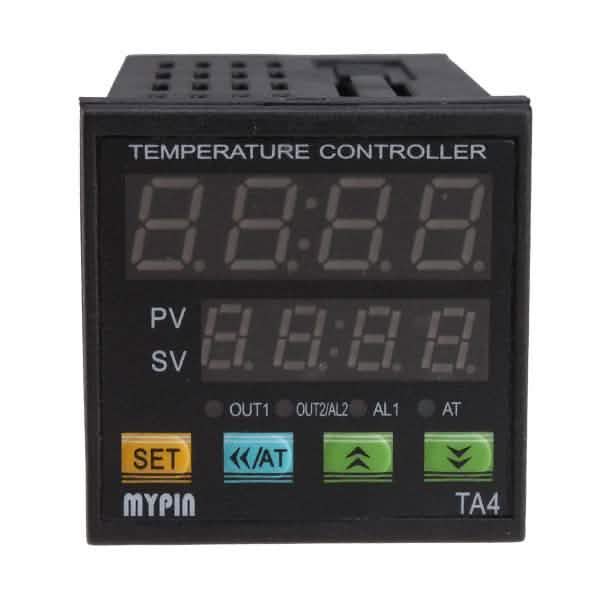

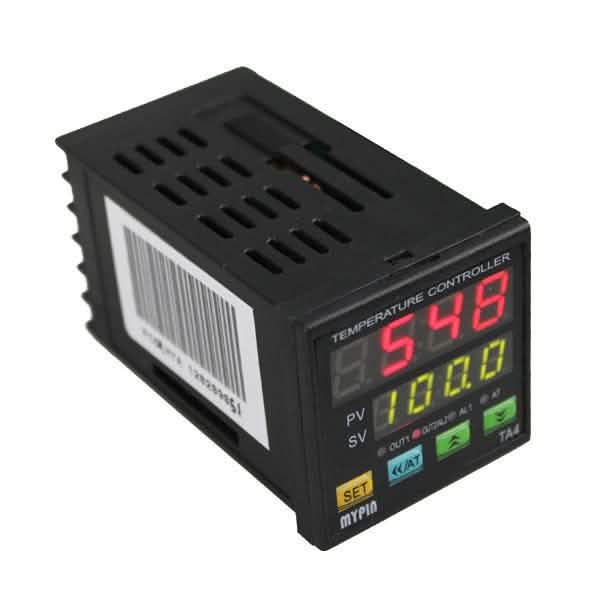

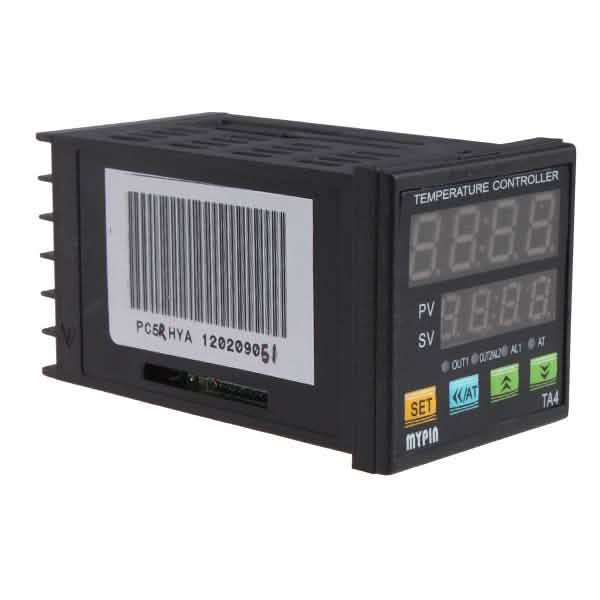

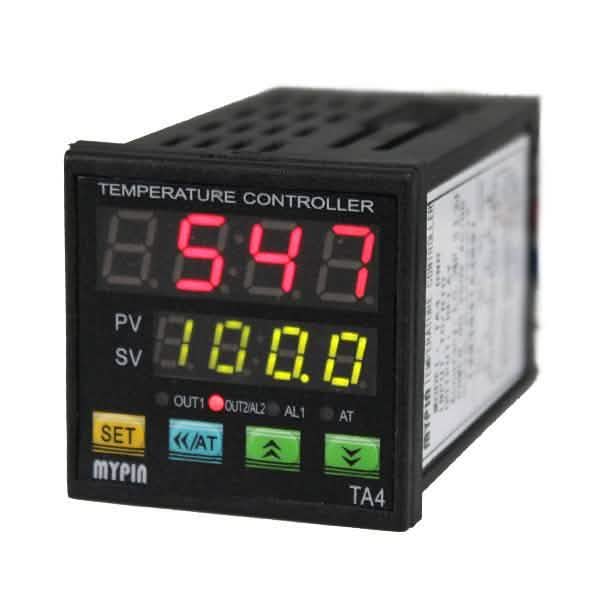

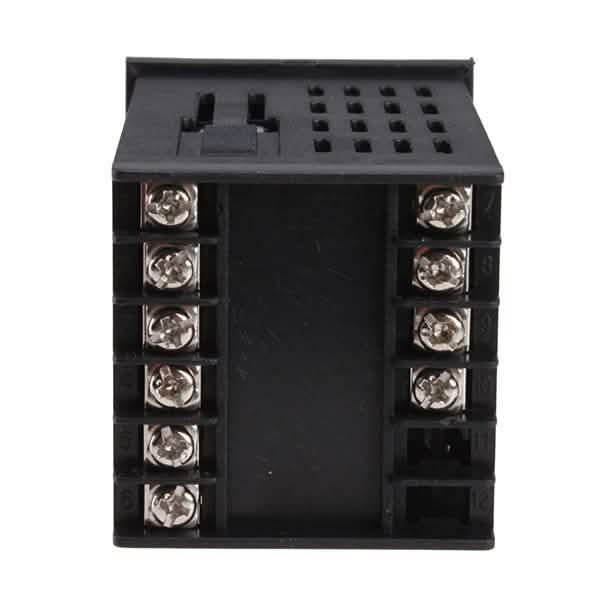

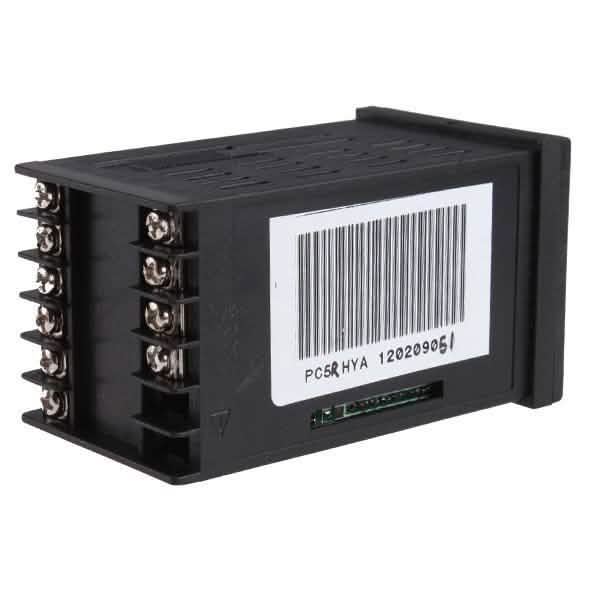

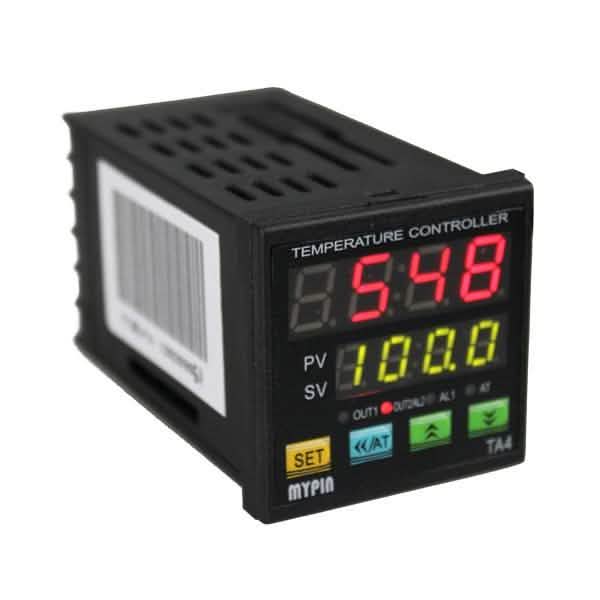

This is a bid for a dual display universal digital programmable temperature controller that supports many types of thermocouple sensor. It can be powered by 90-265V AC/DC , Comsumption5VA. DIN 1/16. 3 built-in Auto-Tuning Time Proportion PID Algorithms to choose from for different applications or environments to be controlled. (for a variety of industries or home projects, heating or cooling applications.)

Features:

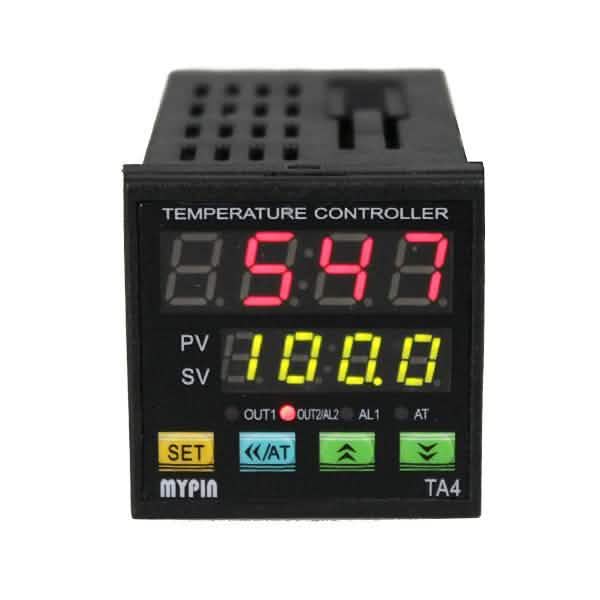

• Display: Dual display for Fahrenheit (F) and Celsius (C)

• Range: -1999 to 9999 (depends on the input signal)

• Main output: Relay, Normal open, AC 250V/3A or DC 30V/3A COSφ=1

• PID cooling/heating control (can choose normal alarm output by software)

• Alarm Output: 1 RELAY: capacity AC 250V/3A DC 30V/3A

• 7 different Dual Output combinations

• Accuracy: 0.3%

• Input: Thermo Resistor: PT100,

• Thermocouple: J,S,K,E,

• Alarm output: 1 line output,7 kinds of alarm mode: high / low / high deviation / low deviation / interval / out of interval /breakage alarm
• Weight: about 150g
• Dimension: DIN: 1/16 (48mm x 48mm x 80mm)
