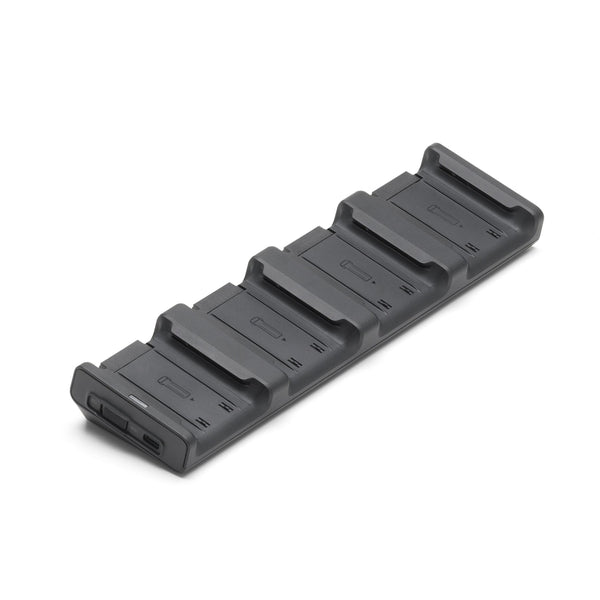

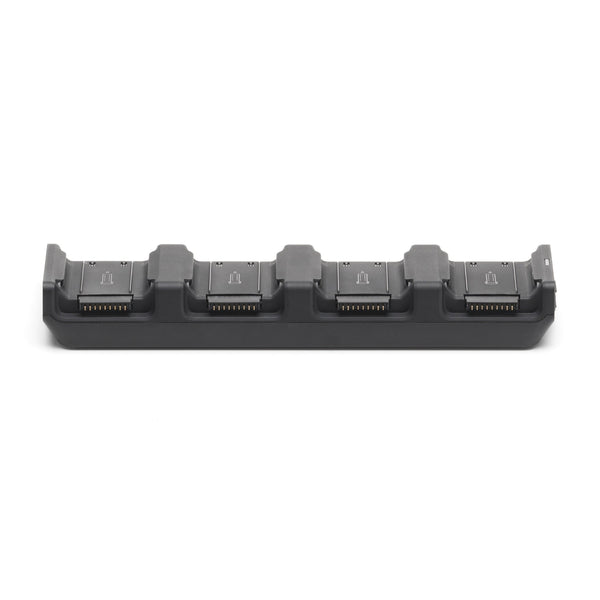

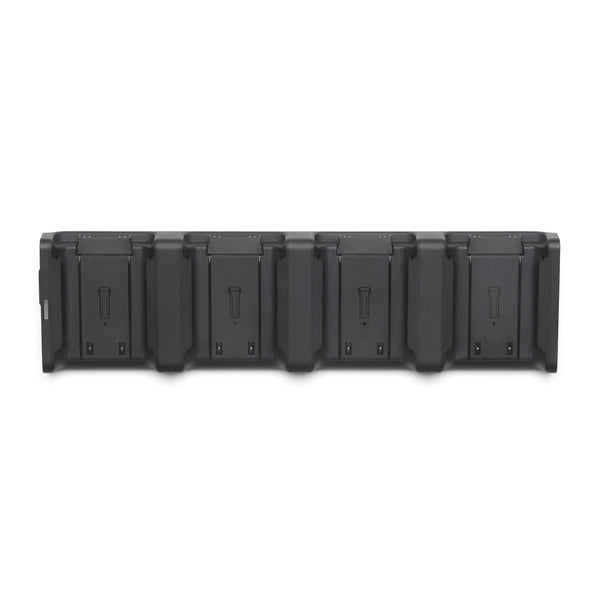

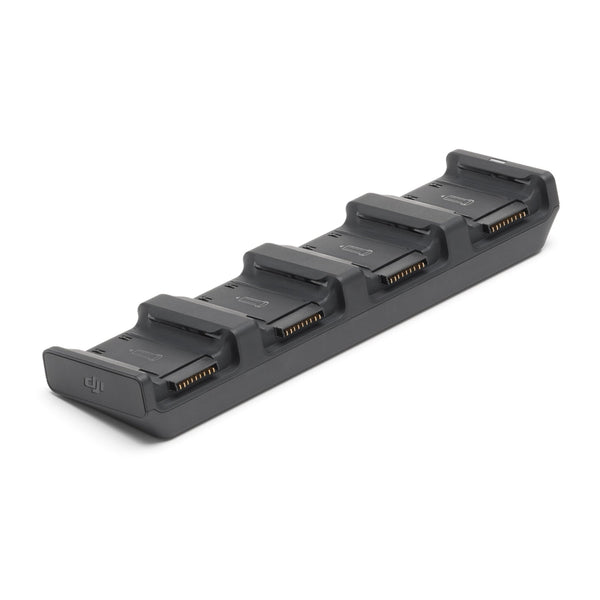

DJI Matrice 4 Series Charging Hub (100W): Sequential battery management for Matrice 4 deployments

The DJI Matrice 4 Series Charging Hub (100W) is a dedicated multi-battery charging solution engineered for the DJI Matrice 4 Series Intelligent Flight Battery. Designed to support structured enterprise workflows, it charges up to four batteries sequentially from high to low power levels. With USB-C input (5–20 V, max 5 A), regulated output between 11.2 V and 17 V, and a rated power of 100 W, it provides controlled charging performance. Standard Mode charges to 100% SOC, while Ready-to-Fly Mode maintains 90% SOC for rapid deployment readiness.

DJI Matrice 4 Series Charging Hub features

• 100 W rated power: Supports structured battery charging cycles.
• USB-C input interface: 5–20 V, max 5 A.
• Regulated output range: 11.2–17 V battery interface delivery.
• Sequential four-battery charging: High to low power priority.
• Standard Mode support: Charges each battery to 100% SOC.
• Ready-to-Fly Mode: Charges and maintains 90% SOC.
• Exclusive battery compatibility: Matrice 4 Series Intelligent Flight Battery.
• Temperature-controlled charging: 41°F to 104°F operation window.
• DJI 100W adapter requirement: Approved USB-C power source.

This charging hub exists to simplify fleet battery rotation within DJI Matrice 4 operations. By prioritizing packs sequentially and offering selectable SOC targets, it helps operators align charging strategy with mission timing while maintaining consistent readiness.

At DSLRPros, we configure enterprise Matrice 4 systems with fully validated charging infrastructure. Our team ensures correct battery and adapter compatibility before deployment. Purchase the DJI Matrice 4 Series Charging Hub (100W) from DSLRPros to maintain reliable power management.
