This kit removes the hardline on LHD cars from brake master cylinder to the T-piece mounted on the crossmember. For use with early type single line brake systems.

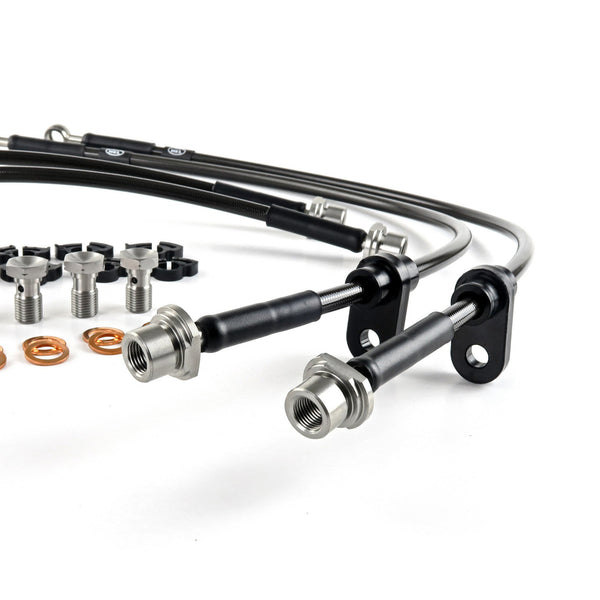

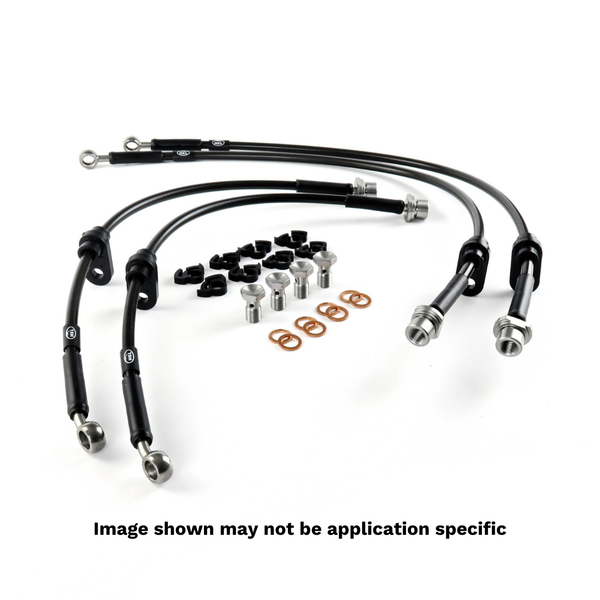

Like for like replacements for the standard flexible brake hoses on your vehicle.

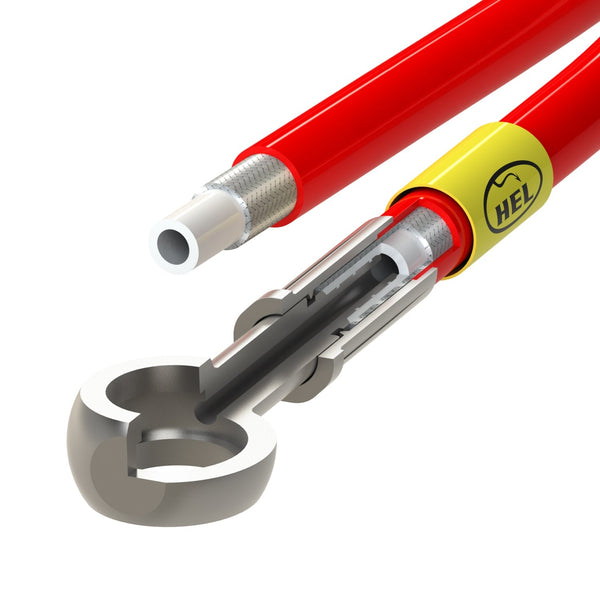

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
| AN Hose Size | AN3, AN03, -3 |
| Internal Diameter | 3mm, 1/8" |
| External Diameter | 8mm, 5/16" |
| Weight (Per Metre) | 71g, 0.16lbs |
| Inner Material (Core) | PTFE |
| External Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Transparent or Colored) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Minimum Temperature | -70°C -94°F |
| Maximum Temperature | 250°C, 482°F |
| Operating Pressure | 4206 PSI, 290 BAR |
| Burst Pressure | 12618 PSI, 870 BAR |
| Minimum Bend Radius (90°) | 19mm, 0.7" |
| Fluid Compatibility | Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT) |
| Brand | HEL Performance |
