This upgraded extender transfers HDMI over a single Cat5 / Cat5e / Cat6 / Cat7 ethernet cable; It can transmit HDMI signal source from HD STB, DVD, PS3, HDMI display card to HD projector, DLP, LCD, LED and other audio-visual equipment. Extends by Router connection or LAN connection

Features:

• Apply M-JPEG technology to process image compressing.
• Supported HDMI format: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

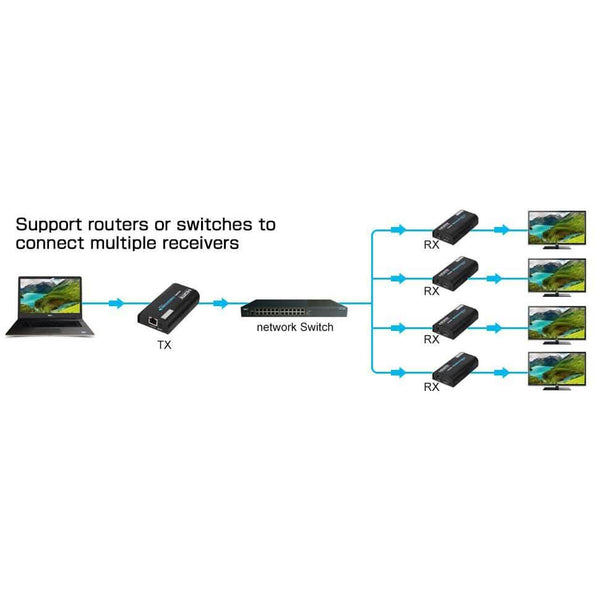

• Supports TCP/IP, extends HDMI signal unlimitedly over router or hub/switch
• Follow the standard of IEEE-568B
• Supports resolutions up to 1080p Full HD
• Supports Ethernet bandwidth: 100M
• HDCP compliant
• Extends by Router connection or LAN connection ,

Cable length requirements are as follows:

• CAT5 Maximum 80 meters between two Devices
• CAT5e Maximum 100 meters between two Devices
• CAT6 Maximum 120 meters between two Devices

Specifications:

• Supports resolutions
• 480i@60Hz
• 480p@60Hz
• 576i@50Hz
• 576p@50Hz
• 720p@50/60Hz
• 1080i@50/60Hz
• 1080p@50/60Hz
• Working Temperature : -10℃ ~60 ℃
• Link Connector
• (Sender/Receiver) : UTP/STP CAT5e/6
• Power Consumption : 3W (max) each
• Relative Humidity : 20%~90%
• Power Supply : DC 5V/1A
• Dimensions : 110 x 58 x 26 mm
• Weight : 239 g
• Cat5e/6 cable : Follow the standard of IEEE-568B

Includes:

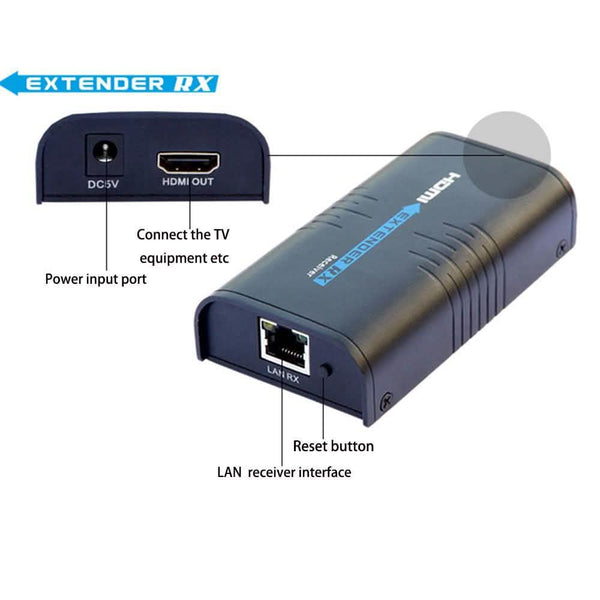

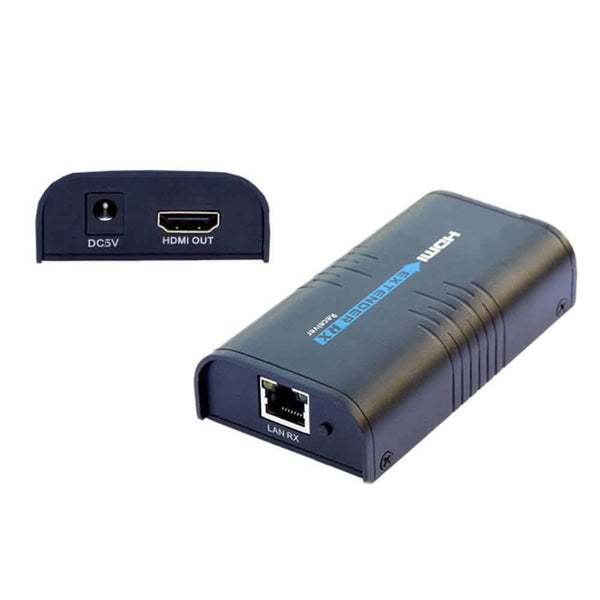

• 1 x HDMI Extender Receiver
• 2 x power supplier
• 1 x User manual
