Features
- Extend Your Swimming Season: The TURBRO Manatee series pool heat pump warms pools of up to 104℉; great for cooler spring and fall days; maintains a comfortable water temperature but is not intended to turn your pool into a hot tub

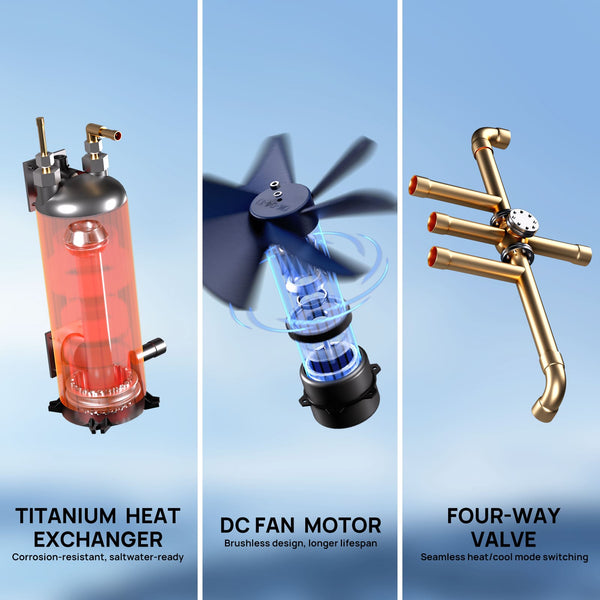

- Cost-Saving Choice: High efficiency with a titanium heat exchanger; heating capacity of 20,000 BTU and a COP rating of 5.58; harnesses heat from the air; cut costs by up to 30% compared to using natural gas and up to 60% compared to propane
- For Above-Ground Pools: Compact design and portable for inflatable pools, frame pools, small spas, and smaller in-ground pools; compatible with saltwater pools

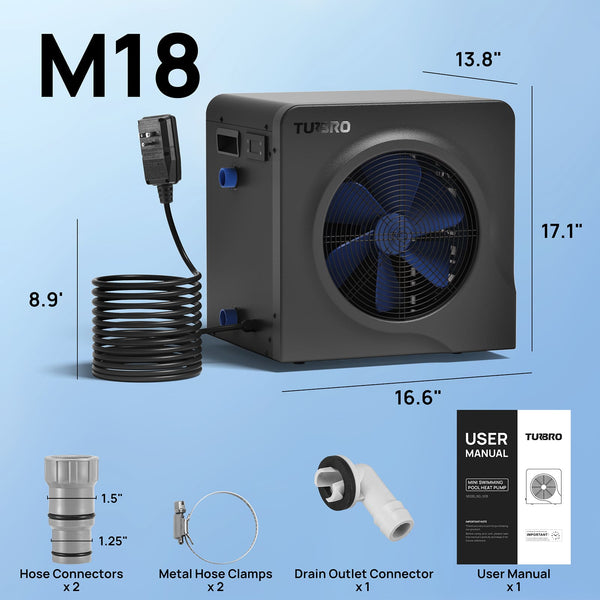

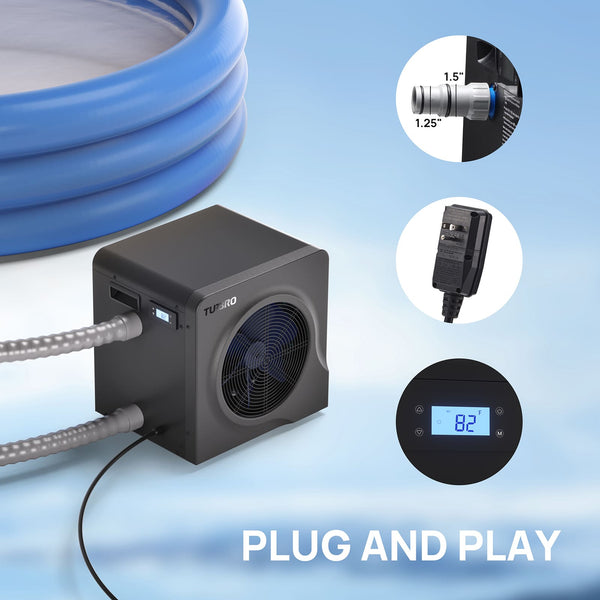

- One-Person Assembly: Comes with hose clamps, hose connectors, and an installation guide; simply connect hoses and plug it in to use, no professional help needed; water hoses and a pool filter are not included
- Safe Use: IPX4 waterproof rating; equipped with a UL STD. 943 compliant three-prong plug and an ETL-approved GFCI leakage protection switch; automatically or manually lock the control panel to prevent accidental changes
Air Source Heat Pump
By absorbing from the air, TURBRO electric pool heat pump delivers consistent and reliable heating while minimizing influences on the environment.
Factors Affecting Performance
The heating effectiveness of your pool heater can be affected by various factors including ambient air temperature, water volume, pool insulation quality, wind exposure, proper installation and maintenance, and other factors.
UL STD. 943 Compliant Plug ETL-Approved GFCI Switch
Intuitive Control Panel
FAQs
-
Q: Can it heat a saltwater pool?
A: Yes. The unit is equipped with a titanium heat exchanger, which is corrosion-resistant. However, please ensure that the heat pump is installed upstream of the saltwater pool and a check valve is installed between them to prevent any backflow. -
Q: Can the unit operate year-round?
A: It can heat the water from 59-104℉ in ambient temperatures ranging from 23-104℉. -
Q: Why is the heating performance not as good as I expected?
A: Heating performance can be affected by various factors such as ambient air temperature, water volume, pool insulation quality, wind exposure, proper installation, and maintenance.
Specification
|
|
|
|
|
|
Model |
|||
|
Power Supply |
110-120 V / 60Hz |
220-240 V / 50-60 Hz |
|
|
Rated Power |
1,050 W |
220-2,350 W |
290-3,258 W |
|
COP |
5.58 |
Up to 15.9 |
Up to 16.2 |
|
Maximum Heating Capacity |
20,000 BTU |
52,200 BTU |
75,000 BTU |
|
Maximum Input Current |
13.5 A |
14.5 A |
18.8 A |
|
Recommended Wire Gauge |
/ |
12 AWG |
|
|
Minimum Breaker Size |
15 A |
30A Double Pole |
|
|
Refrigerant |
R410A |
R32 |
|
|
Ambient Temp. Range |
23-104℉ |
14-109℉ |
|
|
Setting Temp. Range |
59-104℉ |
||
|
Rated Water Flow |
8.80 GPM |
29.10 GPM |
40.10 GPM |
|
Water Pipe Connection |
1.25” or 1.50” |
2.00” |
|
|
Waterproof Level |
IPX4 |
||
