SPECIFICATIONS

Brand Name: TNCE

Certification: CE,RoHS

Choice: yes

Connection protocol: 2.4Ghz WIFI or zigbee

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

How to solve the flashing of the light bulb?: You connect the capacitor to both ends of the flashing light bulb, and it will work normally.

Is Smart Device: Yes

Material: Plastic

Model Number: smart switch

Origin: Mainland China

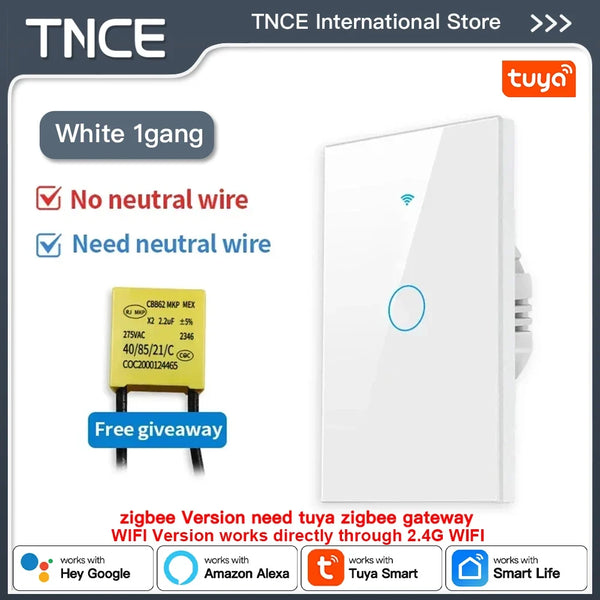

Precautions without neutral lines: You need to connect the capacitor to both ends of the light bulb.

Remote control: Yes, APP by phone or voice control

Switch Type: Touch On/Off Switch

Timer control: Yes, It can be set up through the mobile APP.

Two wiring methods: With or without neutral lines

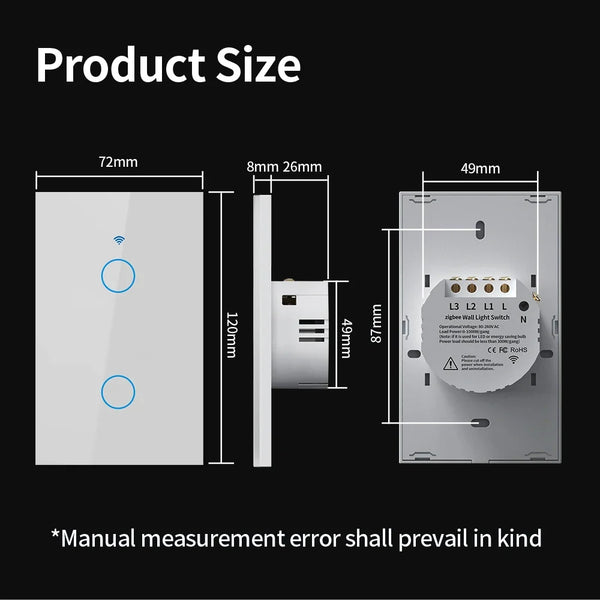

US Specifications: 120x72 mm

Voice control: Yes, need voice assistant. (google home or alexa)

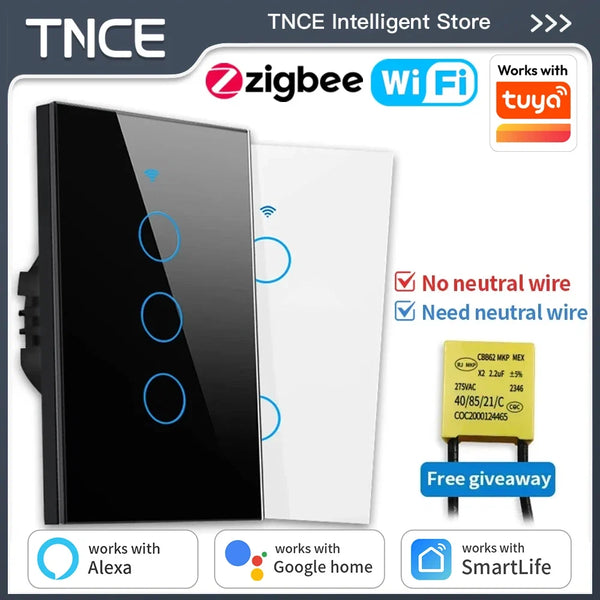

Zigbee Version Tips: If you buy a zigbee version of the switch, it needs a tuya zigbee gateway to work properly.

Note:

1 Gang connects L2, with the capacitor connected to both ends of the L2 bulb.

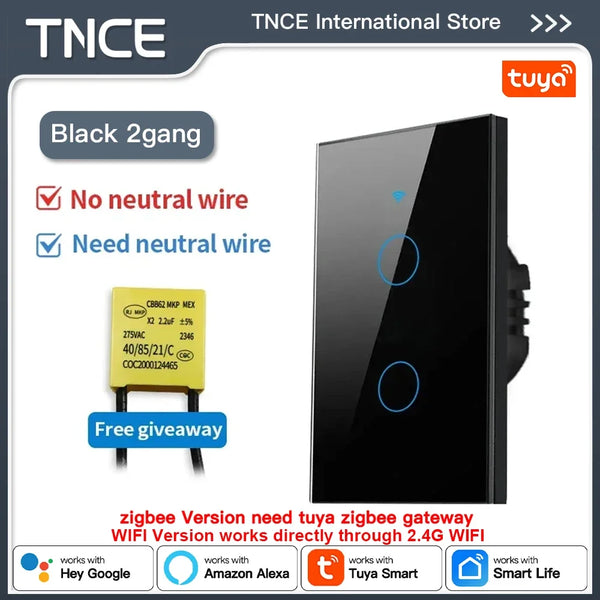

2 Gang connects L1 and L3, with the capacitor connected to both ends of the L1 bulb.

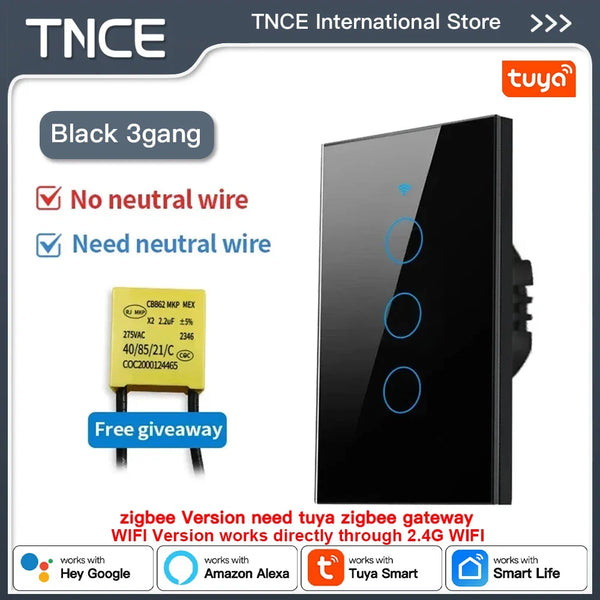

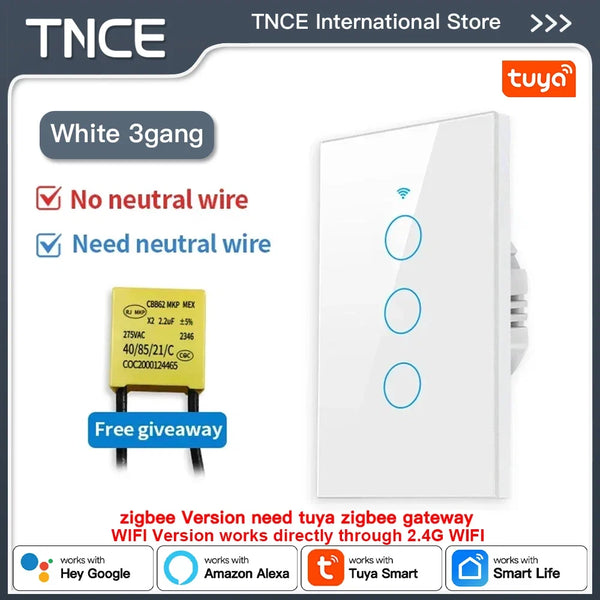

3 Gang connects L1, L2, and L3, with the capacitor connected to both ends of the L1 bulb.

Q&A:

1. Q: If the switch wiring is complete but the switch fails to function properly, or the light bulb keeps flickering, what could be the cause?

A: If you have wired the switch without connecting a neutral line *and* have not installed a capacitor across the terminals of the light bulb, both the switch and the bulb may malfunction. You simply need to connect a capacitor across the light bulb terminals to ensure the device operates normally.

2. Q: Does this panel support both wiring configurations—with a neutral line and without a neutral line?

A: Both methods are supported. If a neutral line is available, you may wire it in the standard configuration; if no neutral line is present, you must connect a capacitor across the light bulb terminals. Please refer to the wiring diagram below for specific connection schemes.

3. Q: If the touch switch on the panel fails to turn on, yet the light can still be controlled normally via the mobile app, how should I resolve this?

A: Please remove the glass panel and check whether the back housing has become deformed during installation and mounting. If the back housing is indeed deformed, please slightly loosen the mounting screws.

Once the screws are loosened, the back housing should automatically spring back to its original position. After the back housing has returned to its normal state, reattach the glass panel; the switch should then resume normal operation.

4. Q: Is it possible for two separate switches to control a single light bulb simultaneously?

A: Yes, it is possible. You can configure a "multi-control association" within the app to allow multiple switches to control a single light bulb in tandem. Specific wiring and configuration instructions are provided in the images below.

5.Q:What should I pay attention to when buying the Zigbee version of the switch?

A: First, when purchasing, you need to look for the option with the word “zigbee” or the second option with the word “zigbee Version” . Second,If you buy the zigbee version of the switch, you need a tuya zigbee gateway to make the switch work properly. This gateway needs to be purchased extra.

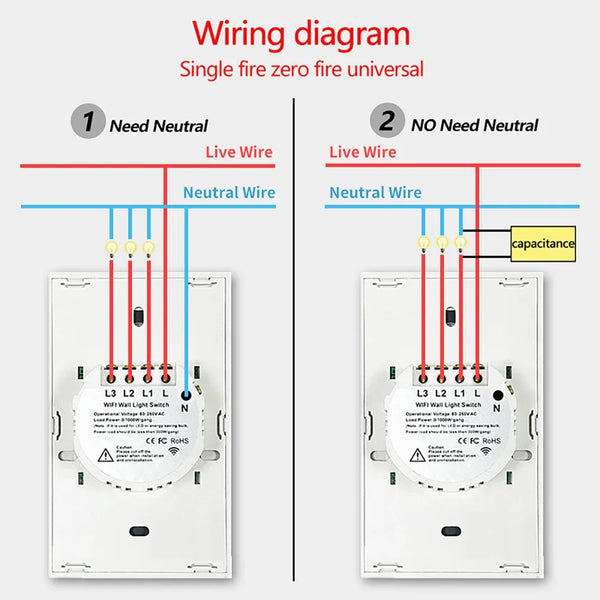

Two wiring modes
First, you need to connect the bulb included in the package to both ends.

If there is a neutral wire, you need to connect the live wire (L), the neutral wire (N), and the bulb wire.

If there is no neutral wire, you need to connect the live wire (L) and the bulb wire.

Two-way control, Multi-control Function
Set on APP, Easy installation and wiring. Switch1 connect normal wiring and connect the light bulb. Switch2 only needs normal wiring, No need to connect the light bulb.

Smaller concealed parts:
Require less space, making installation more convenient.

APP remote control
The user can use a smartphone to remotely control the home electronics remotely anytime, anywhere as long as the phone has 2G / 3G / 4G / 5G WIFI
network compatible with iOS and Android operating system with SmartLife and Tuya

Voice Control
Compatible with Alexa, Google home Assistant.

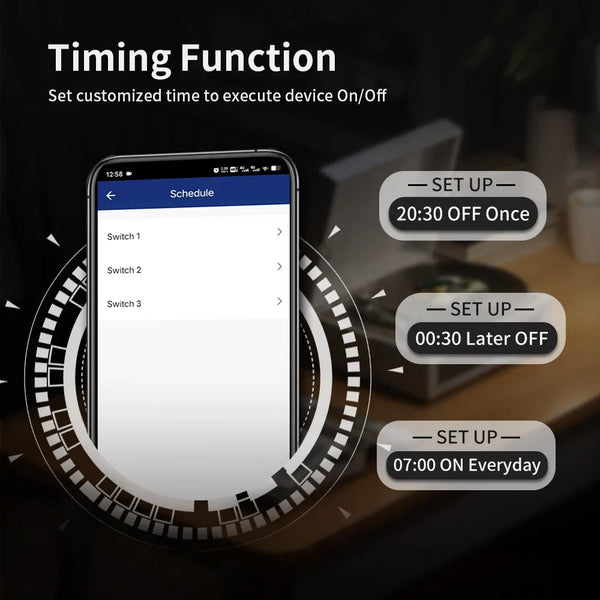

Timing
The smart switch is automatically turned on and off at a given time through the timer function. Choose the time you want to wake up,
automatically open the light, so you can easily enter the day; choose the time you want to close the light.

Waterproof
suitable for humid environment, The glass part of the panel is waterproof

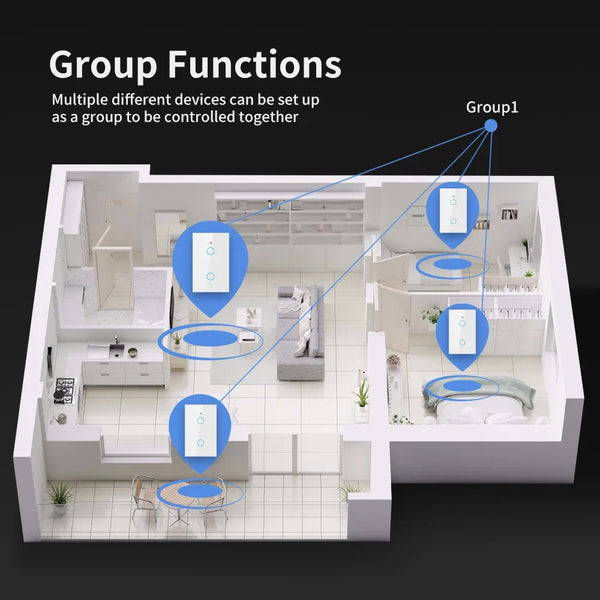

Group Functions
Multiple different devices can be set up as a group to be controlled together.

Sharing Devices
Share devices and use switches with your family
